Product Information
Overview

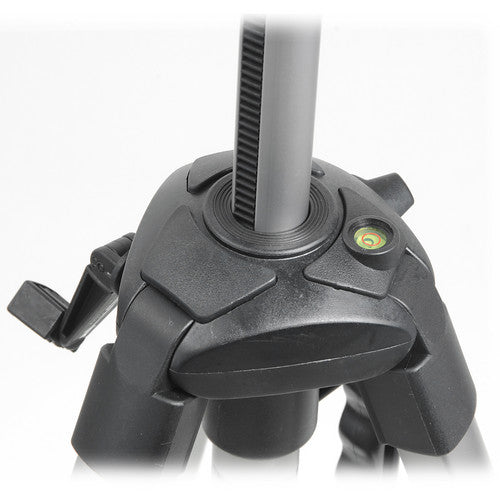

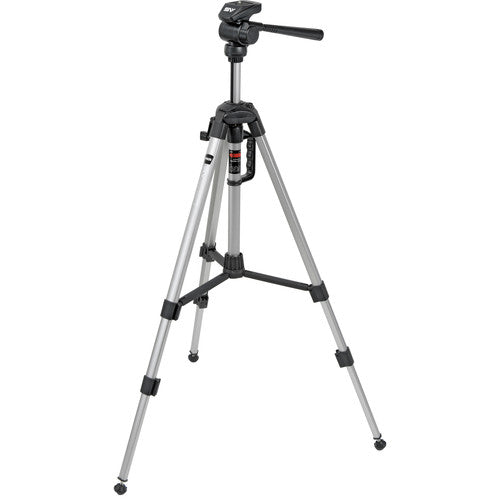

This Smith-Victor P820 Pinnacle Tripod supports up to 6.0 lb, measures 26.5" when folded, and includes a two-way, pan-and-tilt head. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 25.0" to a maximum height of 54.5", or 63.7" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which includes rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil.Specs
Head

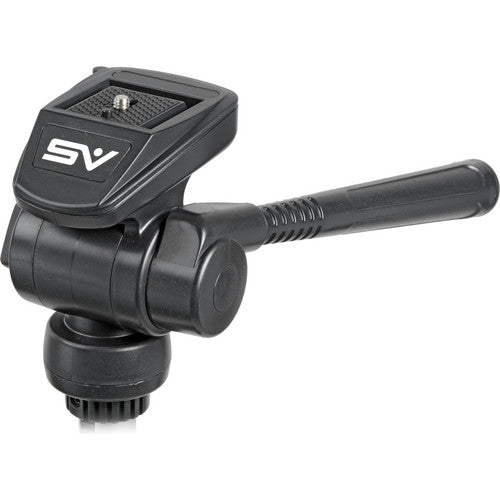

| Head Type | Pan & Tilt Head |
| Camera Mounting Screw | 1/4"-20 Male |
General
| Load Capacity | 6 lb / 2.7 kg |
| Maximum Working Height | 63.7" / 161.8 cm |
| Max Height without Center Column | 54.5" / 138.4 cm |
| Minimum Working Height | 25" / 63.5 cm |

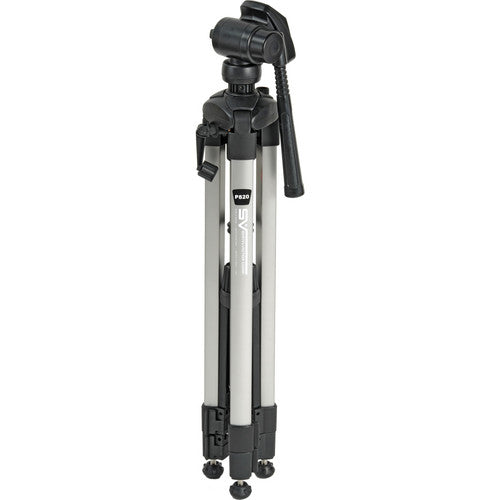

| Closed Length | 26.5" / 67.3 cm |
| Materials | Aluminum Alloy |
| Weight | 4.5 lb / 2 kg |
Legs
| Leg Lock Type | Flip Lock |
| Independent Leg Spread | No |
| Leg Sections | 3 |
| Bubble Level | Yes |
| Feet Features | Retractable, Spiked |
Center Column
| Center Column Features | Center Brace |
| Center Column Sections | 1 |
| Center Column Extension Type | Geared |
| Lateral / 90-Degree Center Column | No |
