The WM1 Wireless Microphone is compact, high performance, lightweight, and compatible with DSLR cameras, camcorders, and audio recorders.

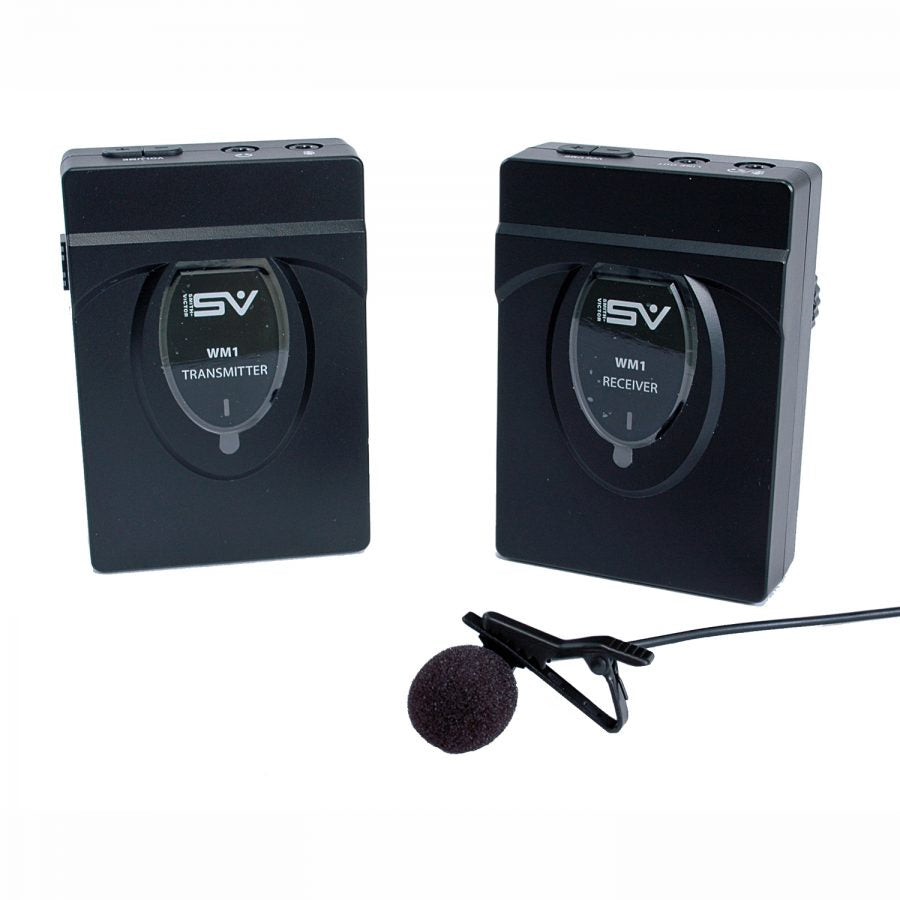

The set consists of a transmitter unit, receiver unit, two earphones (one with speaker), an audio signal cable, and a lavaliere/lapel microphone.
Specs
- RF Modulation: GFSK (Gauss frequency Shift Keying)
- Frequency band: 2.4GHz (2405-2478MHz)
- Frequency response: 35Hz-14KHz±3dB
- Signal/Noise: 76dB or more
- Distortion: 0.1% or less (32Ω,1 KHz,65mW output)
- RF output level:5 mW
- Earphone output level: 32Ω,65mW
- Reception sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz
- Audio input connector: 3.5mm mini jack
- Operation range: 50m (164ft.)
- Power requirements: 3.0V DC (Two LR03/AAA size batteries)
- Consumption power:Transmitter: 3.3V/110 mA, Receiver: 3.3V/100 mA
- Battery life:Transmitter: Approx. 3.5 hours, Receiver: Approx. 4 hours
- Dimensions:Transmitter: 60mm x 86mm x28mm (W/H/D) (2.36 x 3.3 x 1.1 inches) Receiver: 60mm x 86mm x41mm (W/H/D) (2.36 x 3.3 x 1.61 inches)
- Weight:Transmitter: 136g (4.37oz) (Without battery) Receiver: 152g (4.89oz) (Without battery)
Features
- 2.4gHz
- Kit includes Transmitter and Reciever
- Experience the freedom of movement while recording
- Excellent sound quality
- Two-way communication system
- Approximately 50m (164 ft) range
