Product Information
Overview

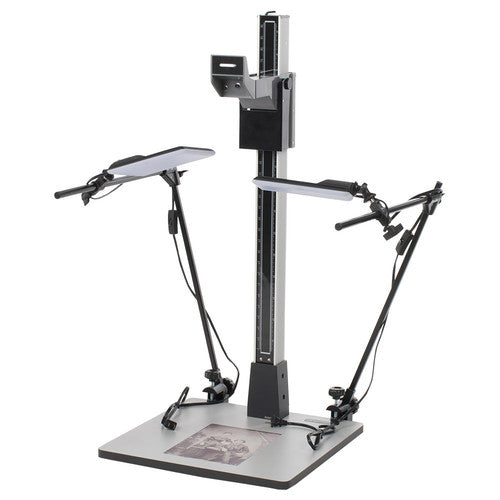

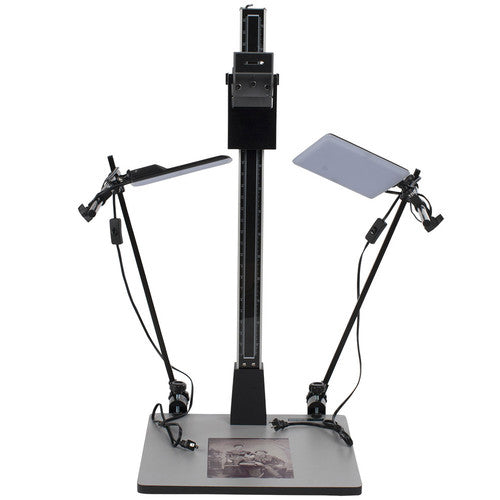

Comprising everything needed for re-photography and copy work applications, the 36" Pro-Duty Copy Stand Kit from Smith-Victor bundles the Pro-Duty Copy Stand with the LED Copy Light Set, which includes two LED panels and two adjustable arms for free positioning of the lights. This kit is ideal for photographing objects and documents up to 11 x 14" in a repeatable and controlled manner.
Copy Stand

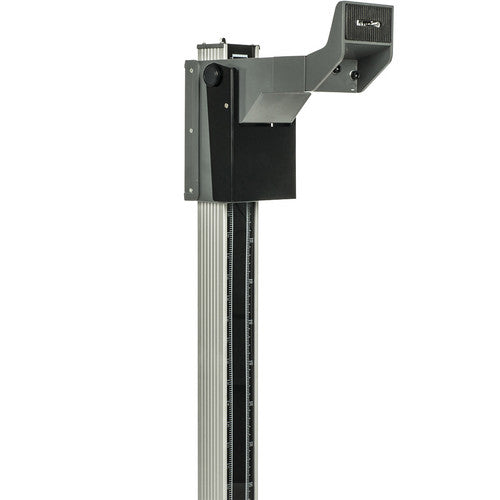

The extruded anodized aluminum alloy column has been designed to limit vibrations and it features scaled index marks for consistency in height placement. The carriage to hold the camera system has a 1/4"-20 tripod mount, is rated to hold camera and lens combinations up to 8 lb, and it incorporates a quick-slide, self-locking lever mechanism to alleviate the need for additional cranks or tightening knobs to securely adjust the shooting height.

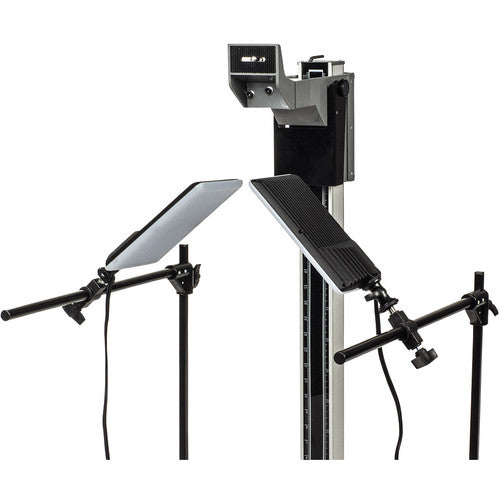

Light Kit

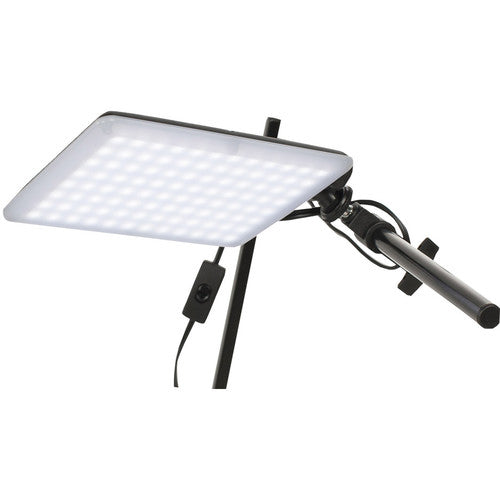

A convenient lighting kit for copy stand work, the light kit includes two compact, flat-panel lights and two adjustable arms for a flexible solution to evenly light a variety of subjects. The LED lights provide incredibly smooth, and even illumination across the baseboard, ensuring that the color rendition of the copies will be accurate to the originals.
Features
- Non-reflective matte 18% gray baseboard
- A 17.6 x 17.6" baseboard for photographing objects up to 11 x 14" in size
- Heavy-duty extruded aluminum, low vibration column
- Sliding release lever for quick height adjustment
- Printed height scale on the column
- CRI 95 LED lights to ensure accurate color rendition
- 1/4-20" camera mount
Specs
Stand Specs
Baseboard Size | 17.6 x 17.6" / 44.8 x 44.8 cm |
Camera Height Adjustment | Manual |
Column Height | 36" / 91.4 cm |
Camera Mount | 1/4"-20 Male |
Load Capacity | Camera: 8 lb / 3.6 kg |
LED Light Kit Specs
Illumination Type | 2x LED Lights |
Number of LEDs | 2x 96 |
Beam Angle | 120° |
Color Temperature | 5600K |
Color Accuracy Standard | CRI 97 |
Photometrics |
484.3 fc / 5213 Lux at 1' / 30.5 cm 60.9 fc / 656 Lux at 3' / 91.4 cm |
Dimming | None |
Expected Lamp Life | 50,000 hours |
Mounting | Clamp (Up to 1.4" / 35.6mm) |
Power Source | AC Input |
AC Input Power | 100 to 240 VAC, Hz |
